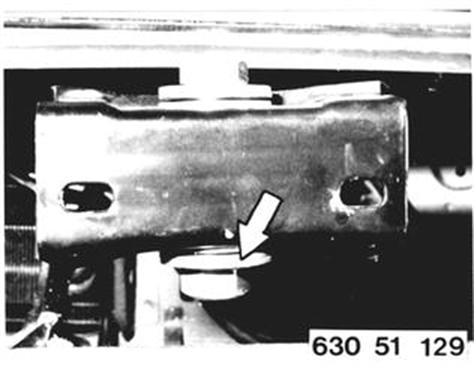

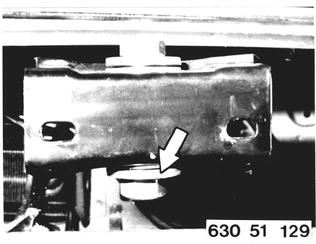

REPLACING BOTH ABSORBERS FOR FRONT BUMPER Remove and install front bumper - 51 11 000. Detach holder from impact absorber. Installation: Torque values¹).  51 11 000 ¹) See Specifications
|  |
 |
|

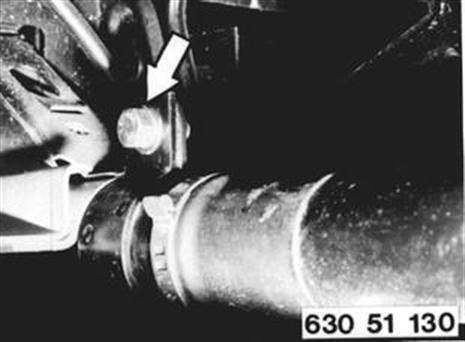

Loosen bolt in engine compartment and take out impact absorber. Installation: Torque values¹). ¹) See Specifications
|  |
Vehicles after change point in 1982 REPLACING BOTH FRONT BUMPER IMPACT ASORBERS Remove and install front bumper assembly 51 11 000. Unscrew brackets on left and right impact absorbers. Installation: Tightening torque*. 51 11 000 * See Specifications
| |
Unscrew bolt. | |

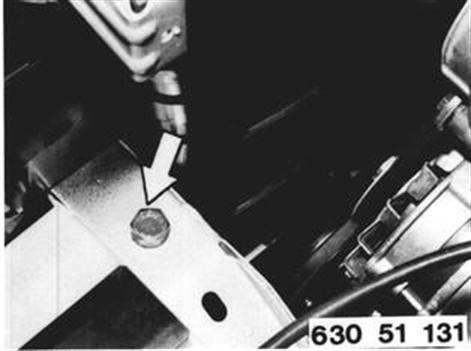

Unscrew bolt on engine carrier. Remove impact absorbers. Installation: Tightening torque*. * See Specifications
| |
