Vehicles before change point in 1982
REPLACING PARKING LOCK CAM SPRING
Remove valve body 24 30 000.

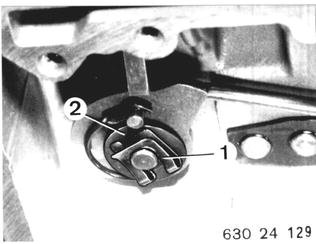

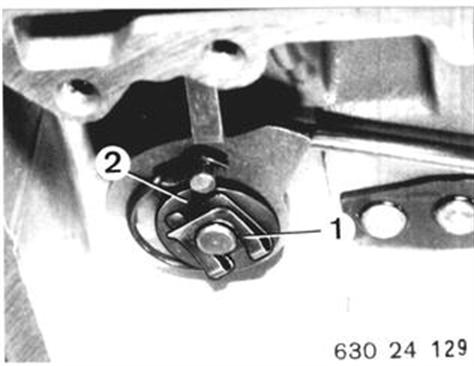

Lift off retainer (1) and remove washer (2).


Siehe auch 24 30 000
63024129 - click to zoom

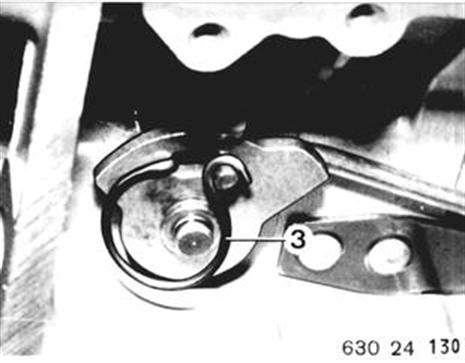

Remove spring (3).

63024130 - click to zoom
