REMOVING AND INSTALLING/SEALING THERMOSTAT HOUSING COVER
Drain part of coolant.
Installation: Bleed cooling system 17 00 039.

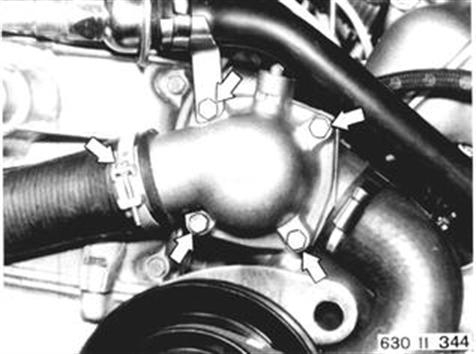

Detach coolant hose and remove cover.


Siehe auch 17 00 039
63011344 - click to zoom

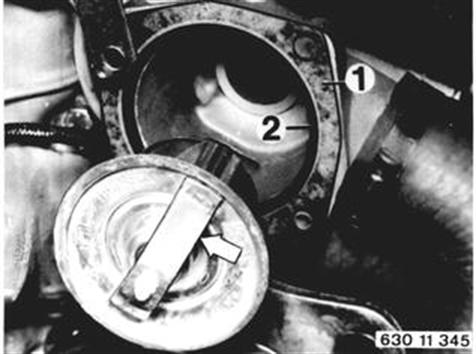

Replace gasket (1) and seal (2).
Installation: Bracket on thermostat faces forward.

63011345 - click to zoom
