CHECKING ENGINE OIL PRESSURE
Pull off wires from ail pressure switch.
Unscrew oil pressure switch (1).
Installation: Check gasket, replacing if necessary.

73011190 - click to zoom

Screw in Special Tool 11 4 050.
Connect hose 13 3 063 in conjunction with
pressure meter 13 3 061.
Check oil pressure¹).


Siehe auch ¹) See Specifications
73011191 - click to zoom

Vehicles after change point in 1982
CHECKING ENGINE OIL
PRESSURE
Pull off wires on oil pressure switch.
Unscrew oil pressure switch (1).
Installation:
Check gasket (2), replacing if necessary.

2811130 - click to zoom

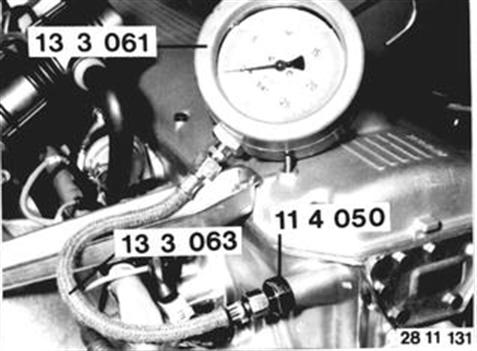

Screw in Special Tool 11 4 050.
Connect hose 13 3 063 in conjunction with pressure tester 13 3 061.
Check oil pressure*.


Siehe auch * See Specifications
2811131 - click to zoom
