REPLACING TORQUE CONVERTER DRIVE PLATE
Remove transmission 24 00 020.
Hold flywheel with Special Tool 11 2 160.
Unscrew stretch bolts.
Installation: Be sure to replace stretch bolts and
to install new ones with Loctite No. 270.
Replace drive plate.


Siehe auch 24 00 020
63011334 - click to zoom

Vehicles after change point in 1982
REPLACING TORQUE
CONVERTER DRIVE PLATE
Remove transmission - see Group 24.

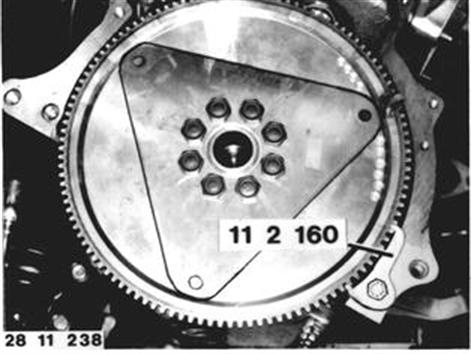

Hold flywheel with Special Tool 11 2 160.
Unscrew bolts and take of flywheel.
Installation:
Replave and install expansion bolts with Loctite No. 270**.
Tightening torque*.
** Source: HWB


Siehe auch * See Specifications
Siehe auch ** Source: HWB
2811238 - click to zoom
